For Span and installation details visit www.palram.com.au
*Trimdeck/TL5 1mm, SPANTUF and KINGKLIP are available for viewing on our website below. Longer length sheets to 10.2m are available ex factory.
Slight colour variation may occur between production runs. Colours depicted in brochure are only a representation

WHY CHOOSE SUNTUF® POLYCARBONATE SHEETING?

Home improvers are faced with a bewildering choice of pergola roofing these days, but SUNTUF® remains the number one choice because it offers flexibility, longevity, versatility and UV protection and lifetime warranty.

LONGEVITY

SUNTUF® Polycarbonate Sheeting is guaranteed not to lose more than 8% of the sheet's light transmission in its first 10 years and no more than 1% for every year thereafter. Suntuf is also guaranteed not to break from hail (up to 25mm in diameter) for 10years. It is the protective layer coextruded into the sheet that allows SUNTUF to maintain its high light transmission and stops it from yellowing for at least 10 years. Clear SUNTUF Sheeting has been tested for over 20 years and the results have shown less than a 5% light transmission loss.

Suntuf Standard

SUNTUF® Polycarbonate Sheeting is purposely designed to offer you year-round protection from the harsh Australian environment. This incredibly strong and flexible polycarbonate is extruded from the most advanced polymers currently used in plastics technology. The result is a high quality, lightweight sheet suitable for roof and wall cladding that is virtually unbreakable.
SUNTUF is manufactured to comply with AS/NZS 4256.5 (Part 10.2 & 10.3) Plastic roof and wall cladding materials.

VERSATILITY
SUNTUF Polycarbonate Sheeting's light weight allows it to be installed at almost any height, on almost any type of structure. SUNTUF is designed for covering verandahs, pergolas, conservatories, gazebos, carports, spa pools, greenhouses and for use on fences, windbreaks or as skylights in garages, garden sheds and farm buildings. Available
in a variety of tints and colours, SUNTUF offers a
way to achieve the best combination of heat and
light transmission.

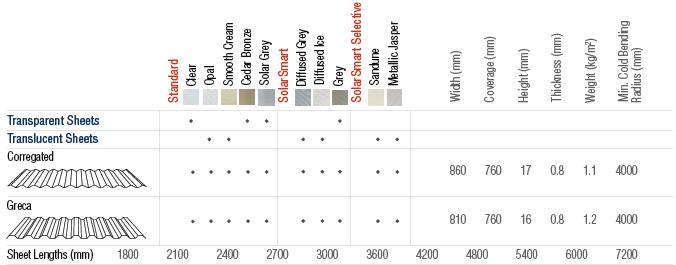

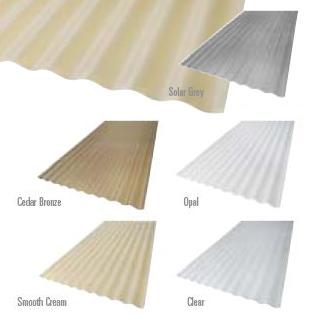

Colours Available: Solar Grey, Cedar Bronze, Opal, Smooth Cream & Clear

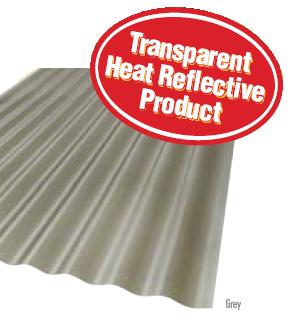

Suntuf SolarSmart

Suntuf SolarSmart represents a revolution in polycarbonate sheeting. The sheet is transparent, yet it is still able to block out more solar radiation than any other sheet currently on the market.

How does SolarSmart work?

SUNTUF® SolarSmart reflects more heat across the entire ultra-violet light spectrum, not just the portion that provides visible light. “Near infra-red” radiation from the sun is invisible to our eyes but contains large amounts of heat that we feel on our skin. New SUNTUF® SolarSmart is unique in its ability to block out “near infra red” heat radiation. Hold up a sample to the sun or to an ultraviolet lamp and you will feel the SolarSmart difference.

Colours Available: Transparent Grey

Suntuf SolarSmart Diffused

SUNTUF® SolarSmart Diffused is a unique new addition to the SUNTUF family of polycarbonate sheeting. The unique heat reflection technology of SolarSmart is combined with an embossed finish to eliminate harsh glare from the sun. This special coating on the underside of the sheet provides glare-free diffused light, which is spread evenly across your pergola for a brighter and more comfortable outdoor area.

Colours Available: Diffused Grey & Diffused Ice

Suntuf SolarSmart Selective

Solarsmart Selective uses the latest technology to provide you with the lowest heat transfer, whilst still giving excellent light transmission. Coupled with Palram’s unique anti-glare technology and proven longevity, Solarsmart Selective is the number 1 in polycarbonate roofing.

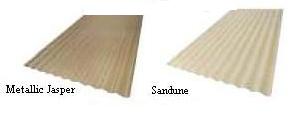

Colours Available: Metallic Jasper & Sandune

• Most technically advanced sheet available
• 25 year Water Tight Warranty
• Lifetime Warranty
• Unique embossed underside
• Optimal diffused light
• Minimal glare
• High quality
• Earthy modern colours
• Matches metal colours and profiles

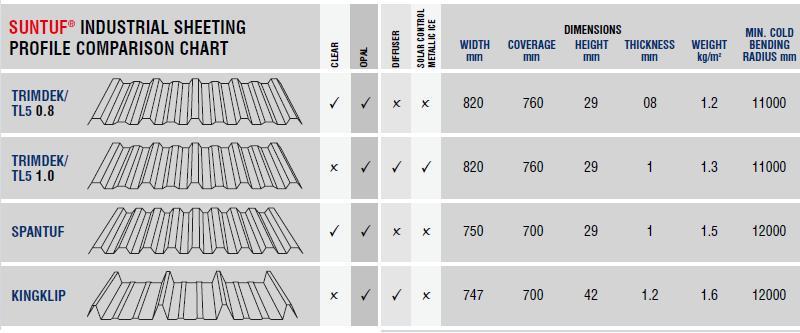

SUNTUF Industrial, the leading polycarbonate skylight panel in the world, is now available in an expanded range of profiles that will integrate with most metal roofing. SUNTUF Industrial possesses up to 20 times the impact resistance of fibreglass and 200 times the tensile strength of glass.
SUNTUF Industrial has the highest light transmission values, the lowest yellowing index, the highest load rating, and the highest resistance to wind uplift. These outstanding properties have been confirmed in accredited laboratory testing and in installations worldwide since 1985. Virtually unbreakable, SUNTUF Industrial polycarbonate roofingretains its impact properties over a wide temperature range while meeting Australian building code requirements.

SUNTUF Industrial is available in the following colours: Clear, Opal, Solar Control Metallic Ice and light Diffuser.

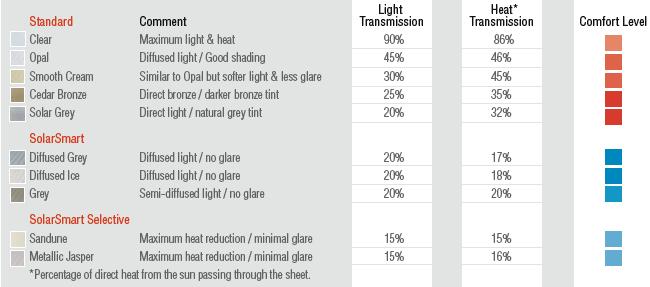

Heat*
Tranmission

75%

UV PROTECTION

SUNTUF Polycarbonate Sheeting offers a maximum protection (as tested by Australian Skin Cancer Research Foundation) of 99.9% against harmful UV rays, helping to protect you and your family all year round. This maximum UV protection also makes SUNTUF suitable for greenhouse applications. At the same time SUNTUF allows up to 90% of available light through the sheet and its resistance to weathering makes it suitable for Australia's varied climatic conditions.

LIFETIME WARRANTY
NOW WITH 10 YEAR WEATHER BREAKAGE

SUNTUF polycarbonate sheets carry a limited manufacturers warranty, not to lose more than 8% of light transmission for the first ten years and thereafter no more than 1% per year when measured in accordance with ASTMD-1003-77. SUNTUF polycarbonate sheets are warranted for ten years from the purchase date, not to break or fail as a result of the impact of hail measuring up to 25mm in diameter.

FLEXIBILITY

SUNTUF Polycarbonate Sheeting is virtually unbreakable it offers great design flexibility when curving both along and across the corrugations. SUNTUF can be curved longitudinally where the radius of the curvature is 4000mm or greater. Polycarbonate's unbreakable qualities make the sheet resistant to impact from hail or even hammer blows, yet the sheets can easily be cut using a wide range of cutting tools.

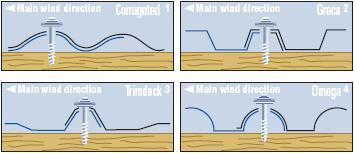

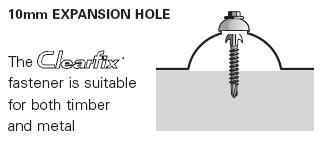

Suntuf Clearfix Fasteners

This revolutionary fixing screw is the No 1 choice when
installing SUNTUF polycarbonate sheeting. To allow for sheet expansion use the Clearfix fixing screw that pre-drills the 10mm expansion hole and drives the screw in one-go, saving up to 50% of installation time.
• Eliminates the use of a second tool for predrilling
• Allows for thermal expansion of sheets
• Fastener self centres during installation
• One fastener self drills into both timber & metal purlins
• Complies to BHP Class 3 specification
• Suits all profiles
• Allow approximately 6-8 screws per m2
• Use variable speed drill at low speed when cutting holes

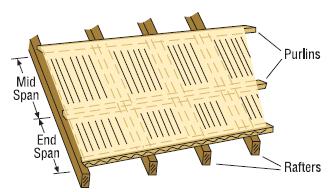

Profile

Mid Span (mm)

End Span (mm)
