Materials include : bondek, condeck, kingflor, reflor
concrete steel formwork
|An alternative to using conventional timber formwork,
Bondek Plus Low-glare Galvanised, Bondek, Condeck, Reflor & Kingflor are unsurpased for their
ease of installation. There can be considerable cost & construction
time savings when using an insitu concrete formwork. Less propping
means more access to underneath the slab during curing, thus
saving time for interior fitout. There are cost savings too
as insitu formwork acts as bottom mesh, providing savings in
both steel mesh and labour costs. So please submit your enquiry.
We look forward to quoting on your next project.
We Offer Generous Discounts - Call 1300
662 554 or
Online only specials will only apply to quote requests submitted by
ONLINE ONLY SPECIAL PRICING. PRICES INCLUDE
|Bondek Plus 600mm Cover Low-glare Galvanised
Bondek 590mm Cover
|Condeck 300mm Cover
|RF55 Reflor 55 600mm Cover
|KF70 KingFlor 70 600mm Cover
|KF57 KingFlor 57 300mm Cover
Price on Application
for Larger Quantities. Prices subject to change without notice.
Trade Prices Current July 2015
Buy where the Trade Buy
Tradesman – Builders – Renovators - Owner Builders
here to Email your requirements for an Obligation Free Quote

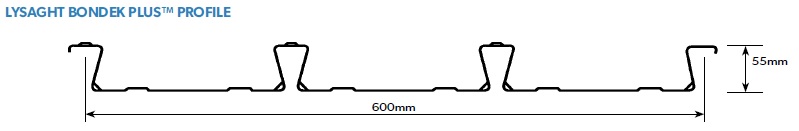

BONDEK® Plus 600mm Cover (Low-glare Galvanised) NSW ONLY

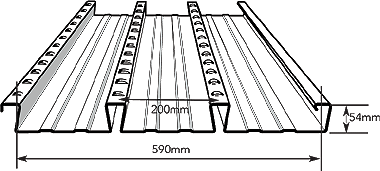

BONDEK® 590mm Cover NOT IN NSW
Product Description and Features
LYSAGHT BONDEK® & LYSAGHT BONDEK® Plus profiled steel decking are highly efficient,
versatile and robust formwork, reinforcement and ceiling systems
for concrete slabs. It is a profile steel sheeting widely accepted
by the building and construction industry to offer efficiency
and speed of construction.
- Excellent spanning capacities for greater strength and less
- Acts as permanent formwork with minimal propping and no stripping
of formwork is required
- Fast and easy to install (590mm wide or 600mm wide NSW) with less handling
- Works as composite slab saving on concrete and reinforcement
- Ribs at 200mm centres creating a safe working platform with
slip resistant embossments
- Durable galvanised coating
- Installation of suspended services and ceilings without drilling
into the concrete slab
- Reliable interlocking mechanism provides horizontal lapping
for faster installation
- Low-glare Galvanised LYSAGHT BONDEK® Plus 600mm Cover is now available NSW Only
Common Uses of this product
Structural Formwork and reinforcement system for composite slabs
Stramit Condeck 300 Cover
Thicknesses 1.0mm, 0.9mm & 0.75mm BMT
Stramit Condeck HP® is the
latest version of Stramit Condeck permanent metal formwork. It
offers superior span performance, reduced side lap fasteners,
a ceiling suspension system and improved fire resistant design
Stramit Condeck HP® Composite Decking is ideal for floor
slab construction in residential, commercial and many industrial
applications. It is suitable for use in both steel frame and concrete
frame construction, including band beam applications. In addition
Stramit Condeck HP® Composite Decking has been successfully
used in post-tensioned slabs. Whilst generally used in composite
construction, Stramit Condeck HP® Decking can be used as an
effective cost formwork in conventional slab applications.
Stramit Condeck HP® Decking is generally offered in three
standard base metal thicknesses of 0.75mm, 0.90mm and 1.0mm. Other
thicknesses may be supplied, dependent on lead times and availability.
RF55 ReFlor55 600mm Cover
Thicknesses 1.0mm, 0.75mm & 0.6mm BMT
RF55® (ReFlor 55)
The Strongest Deck Of Its Type In Australia
RF55® (ReFlor 55) is the latest offer in Fielders
huge range of KingFlor steel formwork solutions.... And there's
more to Fielders new RF55® than meets the eye. Patented
technology makes RF55® the strongest steel formwork profile
in Australia compared to similar decks.
Take a closer look –
• The robust lapping rib of RF55® resists deflection
under construction loads providing spans over 3.3 metres.
• ReLok® embossments developed in conjunction with
the University of Western Sydney ensure a greater shear capacity
of the slab.
KF70 KingFlor 70 600 Cover
Thicknesses 1.0mm, 0.75mm & 0.6mm BMT
You'll be floored. Less concrete. Less propping.
Less laying time.
KF70® is a revolutionary steel formwork solution ideal for
composite concrete slabs in concrete and steel framed construction
over lengthy spans.
It is accepted as the most cost-effective steel formwork system
and formwork of choice around the world.
Around the world 'trapezoidal decks' are the smartest choice in
steel formwork. Fielders KF70® is the most optimal profile
to maximise slab strength and spanning capabilities.
KF70® provides all the benefits of...
• Huge savings in concrete (up to 20%)
• A strong suspended slab
• Less deflection under wet concrete load
• Long spans without temporary propping
Compared to traditional profiles, KF70® saves 65kg of concrete
per square metre of floor area.
KingFlor 57 300 Cover
Thicknesses 1.0mm & 0.75mm BMT
Ideal for exposed ceiling applications
Fielders KF57® is a steel fromwork solution suitable for
composite concrete slabs in concrete and steel framed construction.
KF57® (formally Comform) is a light, easy to use lost-form
steel decking designed to combine with a concrete topping to produce
a composite concrete slab system.
KF57® Savings on Reinforcing Costs.
Fielders KF57® steel formwork incorporates a closed rib profile
that is fully embedded in the concrete slab. The KF57® rib
exhibits excellent resistance to overheating and distortion under
fire load and contributes significantly to the positive bending
capacity of the slab in fire.
Fire tests conducted for Fielders by the Centre of Environmental
Safety & Risk Engineering at the Victorian University of Technology
show that the area of reinforcing for a KF57® slab may be
reduced or eliminated compared to alternative profiles due to
the contribution of the rib.
