Materials Include: Weathertex, Primelok 200mm, Primelok
170mm, Classic Smooth, Weatherboard Shingles, Federation, millwood, Woodsman,
Shadowood, Ecogroove, Selflok 300mm
| We have an extensive
range of Weathertex Weatherboards & Shingles. Our range includes
300mm & 200mm Weatherboards, 170mm & 200mm Primelok, 300mm
Selflok and Weatherboard shingles. Weathertex Weatherboards are
100% Australian Made& Owned, they come with a 25 Year Guarantee,
made from Australian Hardwoods with no chemical additives, they
are Environmentally Sustainable and have been Tested and Proven
for over 45 Years. With the full Weathertex Range available in Pack
lots & Split packs and our short lead times you won't be disappointed
when it comes to these quality products, our quality service &
value for money. So call our friendly team for helpful advise and
we look forward to quoting on your next project. |
Buy where the Trade Buy
Tradesman – Builders – Renovators - Owner Builders -
Handyman
We Offer Generous Discounts - Call 1300
662 554 or
Click
here to Email your requirements for an Obligation Free Quote
Standard Delivery Available Sydney Metro
Area
Pick up available Melbourne & Brisbane
Other Areas are Price on Application
|
|
|
|
|
|
100% Australian Made & Owned |
Australian Hardwood |
Environmentally Sustainanable |
No Chemical Additives |
Tested & Proven for over 45 Years |
Guaranteed not to Split, Crack or Rot for 25
Years |
Weathertex
Weatherboard Range |
Weatherboard
200mm 144 Planks per Pack 3660x200mm |
|
|
|
Weatherboard 200mm Classic Smooth |

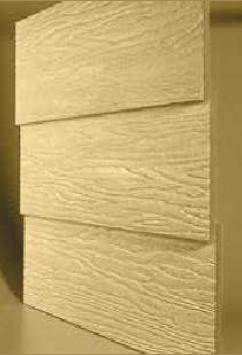

Weatherboard 200mm Classic Ruff-Sawn |
|
|
|
|

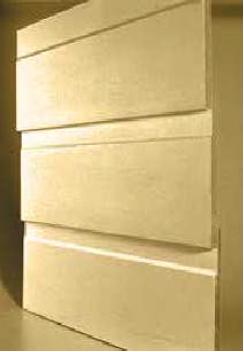

Weatherboard 200mm Rusticated Smooth |

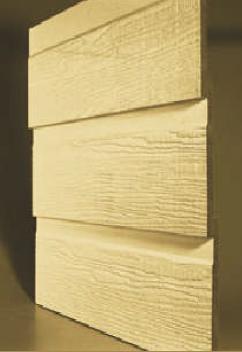

Weatherboard 200mm Rusticated Ruff-Sawn |
|
| Click
here to Email your requirements for an Obligation Free Quote |
Weatherboard
300mm 96 Planks per Pack 3660x300mm |
|
|
|

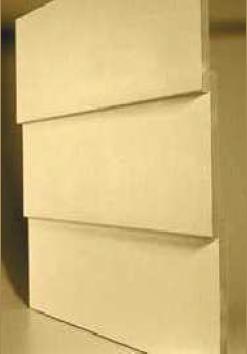

Weatherboard 300mm Classic Smooth |

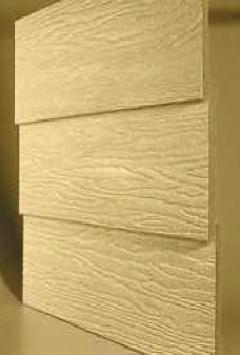

Weatherboard 300mm Classic Ruff-Sawn |

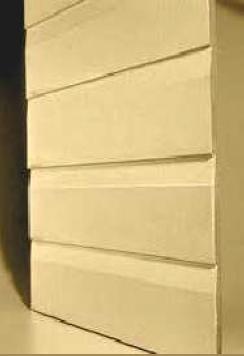

Selflok Weatherboard 300mm Old Colonial
Smooth |
|
|
|

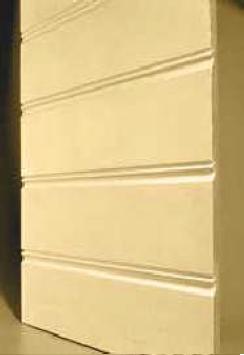

Selflok Weatherboard 300mm Millwood Smooth |

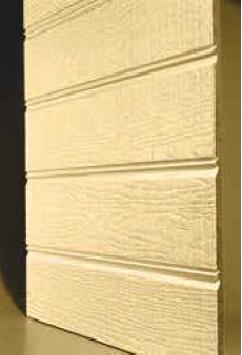

Selflok Weatherboard 300mm Millwood Ruff-Sawn |
Selflok 300mm Ecogroove Smooth 150 |
|
|
|
Selflok 300mm Ecogrove Smooth 300 |
Selflok 300mm Ecogroove Woodsman 150 |
Selflok 300mm Ecogroove Woodsman
300 |
|
|
|
Selflok 300mm Ecogroove Texwood Smooth |
|
|
| Click
here to Email your requirements for an Obligation Free Quote |
Primelok
Weatherboard 200mm 144 Planks per Pack 3660x200mm |
|
|
|

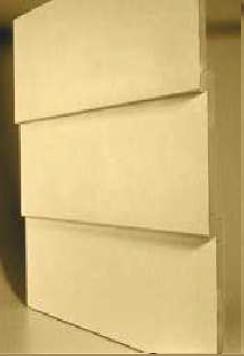

Primelok 200mm Classic Smooth |
Primelok 200mm Classic Ruff-Sawn |

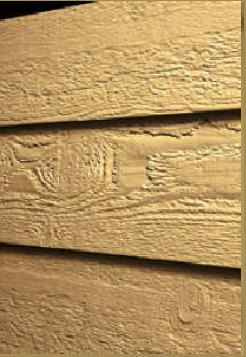

Primelok 200mm Classic Woodsman |
|
|
|

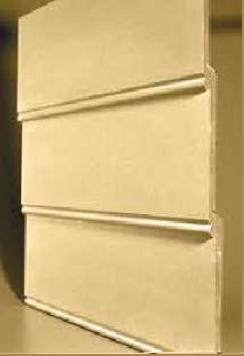

Primelok 200mm Braidwood Smooth |

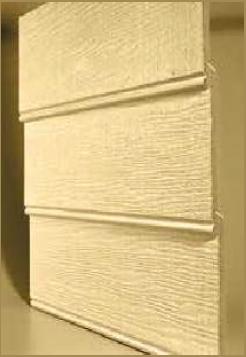

Primelok 200mm Braidwood Ruff-Sawn |
|
| Click
here to Email your requirements for an Obligation Free Quote |
Primelok
170mm 168 Planks per Pack 3660x170mm |
|
|
|

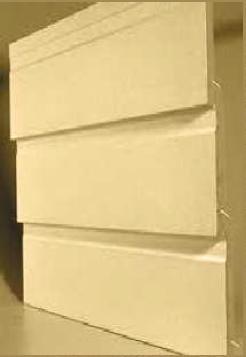

Primelok 170mm Federation Smooth |

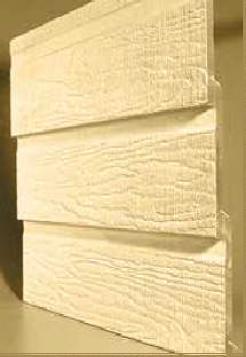

Primelok 170mm Federation Ruff-Sawn |

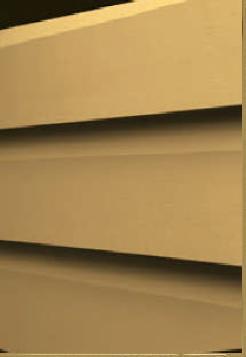

Primelok 170mm Shadowood Smooth |
| Click
here to Email your requirements for an Obligation Free Quote |
Weatherboard
Shingles 120 per Pack 1196x225mm |
|
|
|
Weatherboard Shingles |
|
|
Weathertex Joiners |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

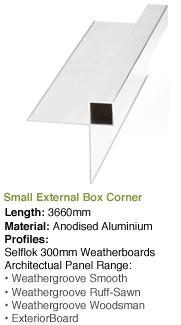

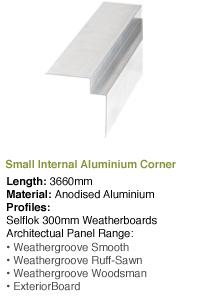

Weathertex
Accessories |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| INSTALLATION |
WEATHERTEX WEATHERBOARDS |
| PREPERATION |
Set a horizontal datum or base line around the perimeter
of the building. Mark with nails and string line.
Measure the wall height from the datum and determine the number of
Weatherboard rows. |
| WEATHERBOARD COVERAGE |
The table below shows the number of Weatherboard
rows to cover walls of a given height. The information is based
on the average width of the Weatherboard and the minimum recommended
lap.
Weathertex Selflok and allPrimelok profiles have set Weatherboard
laps. The top row of Weatherboard may require cutting to fit to
the eaves.
The lap on Weathertex Classic Weatherboards and Wall Shingles may
be increased to give equal width rows over the wall height.
Example:
- 200mm Weathertex Classic Weatherboards are selected to cover
an actual wall height of 2570mm
- 15 rows will cover 2675mm, a height difference of 105mm.
- As 15 rows have 14 Weatherboard laps, divide the height difference
by 14; ie. 105mm/14 = 7.5mm
- With a minimum lap of 20mm, the actual lap becomes 20mm + 7.5mm
lap difference ie 27.5mm.
- At the wall/eave intersection fix a timber cover strip, equal
in width to the actual lap.
You
can download an Installation Guide here. (4.37Mb) |
| WALL HEIGHT COVERAGE |
| |
Weathertex Weatherboards |
Selflok |
Primelok |
| Profile |
Classic Smooth
Classic Ruff-Sawn
|
Classic Smooth
Classic Ruff-Sawn |
Rusticated Smooth
Rusticated Ruff-Sawn |
Wall Shingles |
Millwood Smooth
Millwood Ruff-Sawn
Old Colonial
Ecogroove 150
Ecogroove 300
Texwood Smooth |
Classic Smooth
Classic Ruff-Sawn
Classic Woodsman
Braidwood Smooth
Braidwood Ruff-Sawn |
Federation Smooth
Federation Ruff-Sawn
Shadowood |
| Weatherboard Width |
200 |
300 |
200 |
225 |
300 |
200 |
170 |
| Weatherboard Lap |
20 |
20 |
25 |
40 |
19 |
25 |
25 |
| Number of Rows |
Wall Height Coverage - mm |
| 1 |
197* |
298* |
197* |
225* |
298* |
197* |
168* |
| 2 |
374 |
576 |
369 |
425 |
577 |
369 |
311 |
| 3 |
551 |
854 |
541 |
625 |
856 |
541 |
454 |
| 4 |
728 |
1132 |
713 |
825 |
1135 |
713 |
597 |
| 5 |
905 |
1410 |
885 |
1025 |
1414 |
885 |
740 |
| 6 |
1082 |
1688 |
1057 |
1225 |
1693 |
1057 |
883 |
| 7 |
1259 |
1966 |
1229 |
1425 |
1972 |
1229 |
1026 |
| 8 |
1436 |
2244 |
1401 |
1625 |
2251 |
1401 |
1169 |
| 9 |
1613 |
2522 |
1573 |
1825 |
2530 |
1573 |
1312 |
| 10 |
1790 |
2800 |
1745 |
2025 |
2809 |
1745 |
1455 |
| 11 |
1967 |
3078 |
1917 |
2225 |
3088 |
1917 |
1598 |
| 12 |
2144 |
3356 |
2089 |
2425 |
3367 |
2089 |
1741 |
| 13 |
2321 |
3634 |
2261 |
2625 |
3646 |
2261 |
1884 |
| 14 |
2498 |
3912 |
2433 |
2825 |
3925 |
2433 |
2027 |
| 15 |
2675 |
4190 |
2605 |
3025 |
4204 |
2605 |
2170 |
| 16 |
2852 |
4468 |
2777 |
3225 |
4483 |
2777 |
2313 |
| 17 |
3029 |
4746 |
2949 |
3425 |
4762 |
2949 |
2456 |
| 18 |
3206 |
5024 |
3121 |
3625 |
5041 |
3121 |
2599 |
| 19 |
3383 |
5302 |
3293 |
3825 |
5320 |
3293 |
2742 |
| 20 |
3650 |
5580 |
3465 |
4025 |
5599 |
3465 |
2885 |
|
