Materials Include: Fakro FX Fixed, FV
Opening & FVE Electric Opening Skylights
Delivery Available Australia Wide
Free Delivery Sydney, Melbourne, Brisbane,
Adelaide, Perth for orders over $200.00
Live in a brighter world that spreads abundant natural
light into your living rooms, utility spaces and hallways. Create dramatically
lit rooms with sky views and improved ventilation that look and feel stylish
and stunning.
|
|
|
In the Kitchen |
In the Lounge |
In the Bedroom |
With three models available in a range of standard sizes,
there is a Fakro skylight for every application and budget.
From commercial multi-unit applications, to single bathroom
renovations or attic conversions, Fakro has the answer.
| |
|
|
|
|
|
|
|
|
| Model |
24/27 |
24/38 |
24/55 |
32/38 |
32/46 |
32/55 |
48/27 |
48/46 |
| Nominal Frame Size mm SxK |
565x674 |
565x953 |
565x1372 |
768x953 |
768x1153 |
768x1372 |
1174x647 |
1174x1153 |
| Outside Frame Size mm BxL |
623x699 |
623x978 |
623x1397 |
826x978 |
826x1178 |
826x1397 |
1232x699 |
1232x1178 |

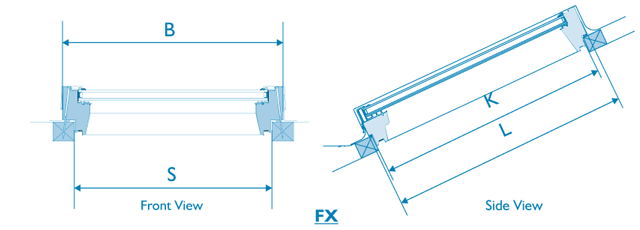

Fakro®
FX Fixed Skylights |
|
Predominately used in overhead applications to allow
light into a room where ventilation is not required, fixed skylights
are designed to sit deeper in the roof for improved insulation
and a lower profile on the roofline.
|

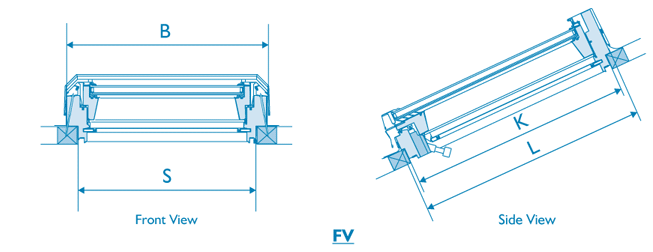

Fakro®
FV Opening Skylights |
|
Great for providing natural light and ventilation,
the manual opening skylight comes complete with a factory fitted
insect screen that can be easily removed for cleaning purposes.
Opening Skylights can be operated by a telescopic control rod when
out-of-reach, or a small crank handle for within reach applications.
Fakro Opeing Skylights allow hot air to escape whilst fresh, subtle
breezes flow into the home, filling the room with additional light,
minimising the need for artificial lighting and electric air-conditioners. |

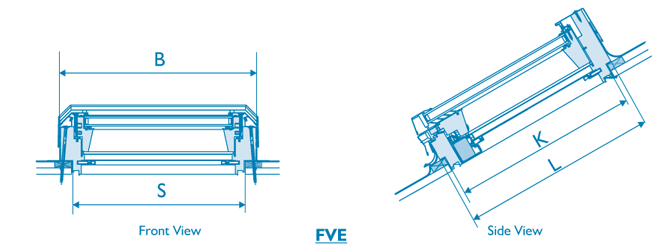

Fakro®
FVE Electric Opening Skylights |
|
| Installing Electric Skylights into your home is now
so much more affordable with the new Fakro Electric Opening Skylight.
This beautifully crafted product has been designed so it can be
easily operated with a remote control from the comfort of your living
room chair. The 24V motor and transformer are cleverly concealed
by a white cover on the bottom of the skylight frame to attractively
suit most home or office building decors.
Built-in rain sensors will automatically close the skylight once
rain is detected and blinds (see accessories below) can also be
installed onto the FVE and operated by the same remote control.
The FVE is supplied with an insect screen which for
safety reasons must be installed to operate the skylight and blinds.
Installation of the FVE is also straight-forward as it has been
designed with a six metre cable and three pin plug that can be connected
to a 230V power outlet inside the roof. |
| |
|
|
Features
that make Fakro Skylights the best!
All Fakro Skylights have highly energy efficient Insulating Glass Units
and are made from high quality Nordic pine, which are arguably the best
on the market.
Insulated
Glazing Unit
- Exterior toughened 4mm safety glass for strength and durability
- Argon gas injected for increased thermal performance (14mm
airspace)
- Low-E coating to reduce solar heat gain
- Laminated safety glass for strength and maximum protection
from fading
- Double thickness (0.76mm) laminating interlayer for extra safety
and UV protection
|
|
Combined, these features not only provide superior safety and energy
efficiency, but also result in reduced fading, excellent sound insulation
ratings and greater durability.
Timber Construction
- Wide, thick Nordic pine timber frames provide maximum stability to
better resist warping and improve the long term integrity of the skylight.
- All timber components are placed in an autoclave and vacuum impregnated
with preservative that reaches deep within the timber structure to prevent
mould or moisture build-up, compared to surface applied preservatives
on some other skylights.
- All timber surfaces are fully factory sealed with two coats of clear
based lacquer to resist absorption of moisture and subsequent swelling
or cracking.
- The UV protected lacquer provides a premium longer lasting finish,
removes the need for expensive onsite finishing costs and allows the
wood to be easily cleaned of finger marks after installation.
- The lacquered timber frame is fitted with condensation gaskets to
ensure all moisture is directed externally for superior sealing.
Combined, these features reduce the level of maintenance required and
extend the life and appearance of the skylight.
Skylights Tested and Approved
Cyclone Ratings
Fakro Skylights have been subjected to Cyclonic and Non Cyclonic Testing
in a NATA (National Association of Testing Authorities) accredited laboratory.
Both the Fakro Fixed Skylight and Openable Skylight passed the test requirements
of Australian Standard AS4285-1995, Skylights, for Resistance to Wind
Pressure for Cyclone and Non-Cyclon Regions and the BCA's-1995.
Acoustic Insulation
Fakro Skylights have been tested for airborne sound insulation and achieved
high level ratings of 36db's for Opening Skylights and 35db's for Fixed
Skylights.
Cyclic Tests
The FVE Opening Skylight has passed cyclic testing of 10,000 open/close
cycles plus an additional 5,000 cycles with extra weight placed on the
sash of 12kgs (snow load). This works out to be approximately 41 years
of opening and closing the skylight once a day.
Concentrated Load Tests
Fakro Opening Skylights have passed concentrated load tests of 1.1kN
as per the default requirements of AS4285-1995.
Skylight Flashing
Your roofing professional will be able to advise you on a suitable
flashing for your Fakro Skylight which are described in detail below.
Constructed from polyester coated aluminium and malleable metal,
Fakro Flashing Kits provide an unobtrusive and enduring water-tight
fit.
The flashings have passed stringent Australian water tightness
tests at 15, 27, 45, and 60 degrees. Skylights using correctly installed
Breezway Fakro Flashings comply with the structural requirements
of AS4285 (skylights).
|
|
Fakro Skyights have two main flashing types:
- EH - used in applications where the skylight is fitted in high-profiled
roofing materials such as tiles (up to 90mm profile height) or corrugated
metal roof sheeting. Not recommended for wide span high-profile roof
decking with rollformed ridges of 35mm or greater, as custom flashing
would be required.
- EL - allows skylights to be flashed with thin, flat roofing materials
such as slate or shingles.
| Skylights require a roof pitch between 15 and 60 degrees. Custom
made flashings which pitch the skylights at 15 degrees or more may
be necessary on lower (flatter) roof pitches.
The use of Fakro Skylights in roof pitches above 60 degrees is
not recommended and the manufacturers warranty is voided in such
applications. |
|
Fakro
Skylight Accessories |
SJP Venetian Blinds
Fakro Venetian Blinds are great for adding comfort to your home,
allowing you to control the direction of light entering a room when
required.
- Available in white.
- Manual or Electric.
- Manual operated by SZS Telescopic Control Rod.
- Electric operated by the same remote used to control the FVE
Electric Skylight, or ZCTi required when used on FX & FV Skylights
|
|

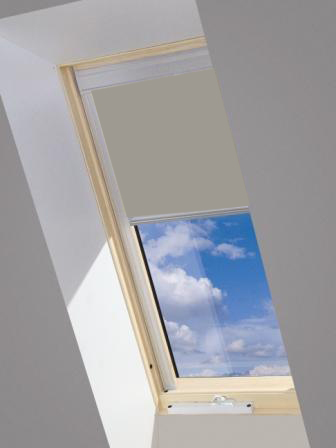

SRF Blockout Roller Blinds
(suits the fixed skylights only)
Fakro Blockout Blinds are the perfect solution for providing maximum
protection from direct sunlight and helps give you the privacy you
may require at any time of day.
- Available in beige.
- Manual operation which can be controlled by SZS Telescopic Control
Rod.
|
|

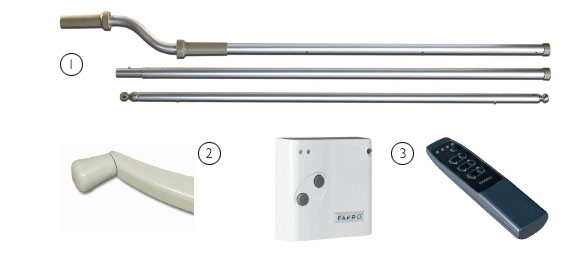

Rod Controls, Hand Winders &
Controllers
- SZS Telescopic Control Rod for FV Model out-of-reach and all
manual blinds.
- CHF Short Crank Handle for FV Model within reach.
- ZCTi Wall Switch & ZRC Remote Control for electirc blind
when used with FX & FV Skylights.
|
|
|
