Materials Include: Velux Roof Windows,
Skylights & Sun Tunnels
| Rooms
filled with natural light and fresh air are invariably more beautiful,
spacious and uplifting to your spirits. Daylight is the essential
element that transforms conventional rooms into splendid spaces
that add value and quality to your home and your life. And then
there's the breeze. VELUX skylights, SUN TUNNEL™ skylights
and roof windows let you bring the best of the outdoors inside with
you. Today, as for the past 60+ years, VELUX is the world leader
in roof windows and skylights. This is no accident. It is a result
of their intense focus on creating the best quality, most energy
efficient daylighting products available. Over the years they have
worked to identify the key components necessary for virtually any
successful daylighting project, and have created a product program
to match. The result is a complete system of daylighting products
unmatched anywhere. Take advantage of their experience by incorporating
the complete system into your daylighting project. We await your
enquiry either over the phone or simply by
filling in an email enquiry form for your next project. |
Buy where the Trade Buy
Tradesman – Builders – Renovators - Owner Builders -
Handyman
We Offer Generous Discounts - Call 1300
662 554 or
Click
Here Email your requirements for an Obligation Free Quote
We have the full range of Velux Roof Windows, Skylights
& Sun Tunnels available
We Offer Generous Discounts - Call 1300
662 554 or
Click
Here Email your requirements for an Obligation Free Quote
Delivery Service Available Australia Wide
2-4 Working Days to most areas
Click
here to Enlarge Map
Delivery Charges
If your Post Code is listed:
NSW Free :: ACT VIC SA QLD NT WA TAS $60.00
If your Post Code is not listed: Additional
$30.00 added to the Delivery Fee Above
 |
VELUX
roof windows are tested according to the most stringent demands
to energy efficiency. This applies for instance to low-energy glazing
with a low U-value, which means that a minimum of heat will be transmitted
to the outside through the insulating glass unit. And a high g-value,
which means that a large amount of the sun energy will be transmitted
to the room. Moreover, VELUX roof windows have been designed to
minimise the risk of cold bridges.
Insulating
glass
The insulating glass unit has great influence on the window's energy
efficiency performance. VELUX offers a wide range of insulating
glass units designed to meet the individual end-user's requirements,
whether the purpose is to save energy or to keep the sunheat out.
If the climate is hot, homeowners need insulating glass units that
transmit a minimum amount of sunheat into the room. So the optimum
insulating glass unit depends on the climate in the country where
the window is installed.
A common feature of all insulating glass units is that they combine
the latest break-through in technological development - the so-called
warm edge technology that minimises condensation on the inside of
the pane.
|
10
Year Warranty on all Skylights and Roof Windows
- 10 Year Warranty on window manufacture
- 3 Year warrantyon accessories, including electric controls
Tested and Approved to Australian
Standards
The Velux product range has been tested to, and meets AS 4285, the
Australian Standard for Skylights:
- water tightness
- non cyclonic wind loads
- cyclonic wind loads
- concentrated load tests (120 kgs)
|
Energy Ratings
The Window Energy Rating Scheme's (WERS) scientific tests provide
5 stars being the maximum achievable.
VELUX skylights have all received the maximum 5 stars on the WERS
Summer rating.
VELUX skylights and roof windows are also a positive inclusion in
energy building programs run by State Governments such as:
- BASIX in NSW
- FirstRate in VIC
|
Building Code
Compliance
All VELUX skylights/roof windows (except sun tunnels) are deemed
non-combustible and thereby comply with BCA Fire Seperation requirements
(i.e. suitable for use within 900mm from allotment boundary/seperation
wall)*.
*CSIRO assessment report (FCO-2046) avaialable on
request. VELUX recommends consultation with relevant authority before
work commences. For bush fire areas refer to seperate Bush Fire
Standard (AS 3959) |

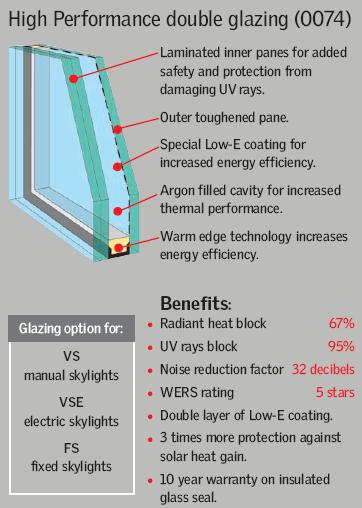

All VSE, VS and FS Skylights come
standard with VELUX 2004 (0074) Hi Performance Double Glazing.

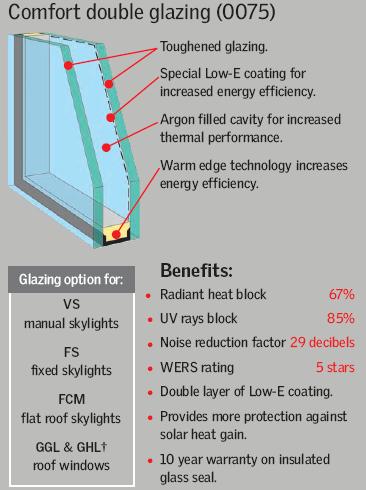

On some VS and FS models, VELUX
2005 (0075) Comfort Double Glazing is optional.
All GGL & GHL Roof Windows and
FCM Skylights come standard with VELUX 2004 (0074) Double Glazing

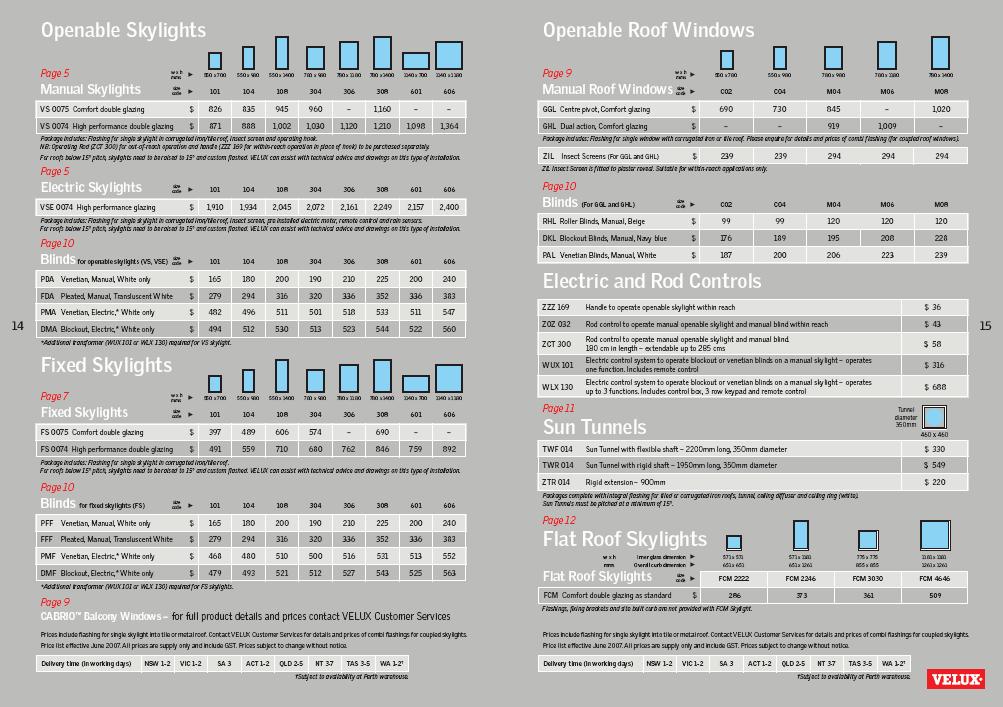

AVAILABLE SIZES ARE SHOWN BELOW
Click
here to view Velux Product Brochure 5.33MB
 |
 |

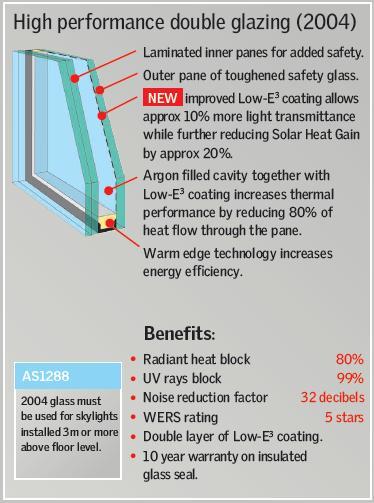

| High Performance double glazing 2004 (previously 0074) |
Comfort double glazing 2005 (previously 0075) |
 |
VELUX
VS
Manually operated top-hung skylights
Quality construction wood frame and sash with outer aluminium cladding.
• Operated by base handle, for within reach situations, or by
rod for out-of-reach use (to 285cms above head height).
•
Flyscreen fitted as standard.
• Choice of 8 sizes, with
the option of High Performance or Comfort double glazing on most sizes.
• Maximum 5 stars on WERS Summer rating.
• Complete
with flashings for corrugated iron or tile roofs.
Control
options
• Window handle for operating within-reach
skylights.
• Telescopic rod control for out-of-reach situations.
(180cm in length, extendable up to 285 cms.)
• Short control
rod. 60cm long. (Control rods will also operate manual blinds.)
Blinds
• Choice of Solar Powered Blockout, or electrically operated
Venetian blinds.
•
Tailor-made to exactly fit each size of skylight.
• Easy
to fit. New innovative Velux Pick & Click! system makes installing
our blinds a snap! |
| |
|
|
VELUX
VSE
Electronically operated top-hung skylights
The ultimate skylight that provides abundant daylight and controllable
ventilation.
• Quality wood frame and sash with aluminium cladding.
• Complete with pre-installed electric motor, control system
and two rain sensors (automatically closes the window once rain
is detected).
• Simple to install – 2 metre lead (supplied) plugs
straight into power point.
• Choice of 8 sizes.
• High Performance safety glazing & flyscreen as standard.
• Maximum 5 stars on WERS Summer rating.
• Complete with flashings for corrugated iron or tile roofs.
Blinds
The VSE is pre-wired for the addition of electrically operated Blockout
or Venetian blinds which can then be operated by the remote control
Complete electronic package |
| |
|
 |
VELUX
FS
Fixed skylights
Cost effective for creating light filled rooms where adequate ventilation
already exists. Energy efficient glazing and the use of blinds ensures
heat transference is minimised.
• Select wood frame with
exterior protective aluminium cladding.
• Flashings for
corrugated iron or tile roofs.
• Choice of High Performance
or Comfort double glazing on most sizes.
• Streamlined exterior
– smooth low profile does not obstruct the roofline.
•
Maximum 5 stars on WERS Summer rating.
• Available in 8
sizes.
Blinds
•
Choice of Pleated, Block out or Venetian blinds, with rod control
for out-of-reach situations.
• Electrically operated Blockout
or Venetian blinds, using control system WUX101 or WLX 130, can be
fitted |
| |
|
 |
VELUX
GGL
Centre-pivot roof window
Beautifully engineered for a lifetime of use, the GGL is ideal for
in-reach attic situations where furniture can be positioned beneath
the window.
• Top control bar allows the window to rotate
for maximum ventilation – and up to 180° for cleaning the
outer pane from inside the room.
• A short pull on the control
bar allows filtered background ventilation even while the window remains
shut.
• Quality lacquered pine sash and frame.
•
For within-reach situations, or rod control for out-of-reach.
• Complete with outer aluminium cladding and flashings for corrugated
iron or tile roofs.
• Available in 4 sizes.
•
High Performance double glazing as standard.
• Insect screen
available as optional extra.
Blinds
• Choice of manually operated Blockout (white only) or Venetian
(white only).
• Charcoal grey
exterior Awning blinds also available. |
| |
|
 |
VELUX
GHL
Dual action roof window
Developed for use in attics with shallower pitched roofs to maximise
roof top views.
• For within-reach situations.
•
Opens in two ways: the bottom handle allows for top-hung opening;
while a short pull on the top control bar operates the filtered vent
flap for background ventilation even while the window is shut. A longer
pull allows the sash to rotate 180° for ease of cleaning the outer
pane from inside the room.
• Quality lacquered pine sash
and frame.
• Complete with outer aluminium cladding and
flashings for corrugated iron or tile roofs.
• Available in 4 sizes.
• High Performance double glazing as standard.
• Insect screen available as optional extra.
Blinds
• Choice of manually operated Blockout (white only) or Venetian
(white only).
• Charcoal grey
exterior Awning blinds also available. |
 |

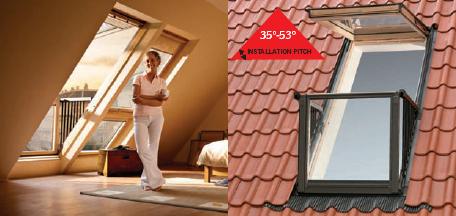

VELUX
CABRIO™
Balcony roof window'
When closed it looks just like an ordinary skylight – but within
seconds it opens up to a fantastic roof top balcony. Bottom section
moves forward and locks upright with integral banister railings to
form a sturdy balcony surround. |
VELUX Blinds
– effective light control
VELUX has a choice of blinds that provide different levels of light
control. Tailor-made to fit perfectly to each size of skylight or
roof window, they are easy to install and are supplied with aluminium
side channels that allow the blind to be positioned at any point down
the window. |
|
Blockout
blinds
Provide complete blockout from light.
Manual, Electric or Solar Powered versions available.
• Blind can be stopped at any position on the window.
• Electric version for use with VSE skylights.
• Solar Powered version for FS & VS skylights.
• Manual version for use with FS skylights, GGL and GHL roof
windows.
• Reduce light by approx 100%. |
|
Venetian
blinds
Control the amount and direction of light.
Manual or electric versions available.
• Aluminium slats, white on inner surface, gold colour metallic
coating on the outer.
• Manual or Electric for use with VS, VSE and FS skylights
• Manual version only for use with FS skylights, GGL and GHL
roof windows.
• Reduce light by up to 85%. |
|
Pleated
blinds
Soften incoming light for a decorative effect.
Available in manual form only. While Stocks Last
• Translucent white, dirt resistant treated cotton.
• Manual version for use with VS and FS skylights only.
• Reduce light by approx 50%. |
 |
|
VELUX
FCM
Flat roof, glazed skylight
The brilliantly simple FCM flat roof skylight incorporates the VELUX
Comfort double glazed unit and an all metal, insulated exterior frame.
It gives not only a lower profile on the roof, but also provides a
“cool” daylighting solution by effectively blocking heat
build up and UV rays.
Huge benefits at a fraction of the price you would expect.
•
Unlike acrylic or polycarbonate – glass will not fade or discolour
over time.
• VELUX High performance double glazing blocks 80% of radiant
heat and gives 99% protection from UV rays. |
• Maintenance free anodized heavy-gauge aluminium frame withstands
the extremes of the Australian climate.
• Maximum 5 stars on WERS Summer rating.
• Available in 7 sizes: 3 square for replacement of old domes
and 4rectangular skylights that can be used either in “landscape”
or “portrait”, extending the possible uses.
• Requires custom-made on-site flashing (and curb to suit
roof pitch and material).
• 10 year warranty.
* VELUX recommends FCM installed at a minimum pitch of 2° to
prevent condensation build-up and to allow water run-off.
|
| (Sizes in
mms - w x h) |
|
|
|
|
|
|
|
| Inner Glass Dimension |
572x572 |
572x877 |
572x1181 |
572x1792 |
775x775 |
775x1181 |
1181x1181 |
| Overall Curb Dimension |
665x665 |
665x970 |
665x1275 |
665x1885 |
870x870 |
870x1275 |
1275x1275 |
| Product Code |
FCM 2222 |
FCM 2234 |
FCM 2246 |
FCM 2270 |
FCM 3030 |
FCM 3046 |
FCM 4646 |

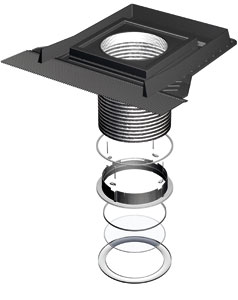

Velux Sun Tunnel
 |
- Integrated polyurethane flush frame and no-lead flashing with
4 mm toughened glass and sash in ASA (ABS plastic) 2 metre superreflective,
flexible tunnel (diameter 35 cm / 14”)
- Easy to assemble diffuser kit with double acrylic insulating
pane
- Standard white ceiling trim ring
|
| Before |
After |
|
|
Natural light where you never thought
it could reach
Many houses have bathrooms, hallways and other rooms where daylight
only enters when you open the door. Dim and dark, these rooms are
unwelcoming places until you turn on the light.
Now that has all changed.

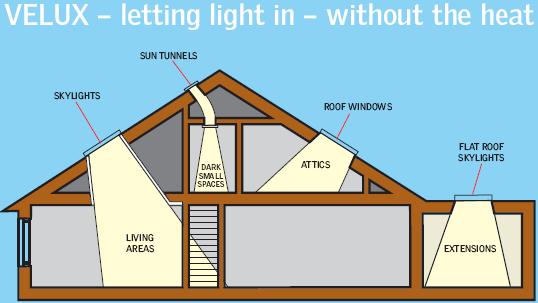

The VELUX Sun tunnel signals the end of dim and dismal spaces in the
home. The VELUX Sun tunnel brings natural light into even the darkest
and most isolated spaces through a specially designed, flexible tunnel
from roof to ceiling.
From the outside it looks similar to a classical VELUX roof window
with its elegant flat design and clear glass. From the inside it diffuses
light captured from the sky into every corner of the bathroom or hallway,
transforming it into a place where you will often stop awhile to savour
the essence and tranquillity of natural light. |
|
